Gold gemini shaking table - China staurk
Gemini table test video
Gemini table structure:
1.Support rack: Installation of various components of the equipment and fixation with the ground.
2. Drive system: reduction motor, crank, spring connection system.
3.Anti retreat system: anti retreat screw (rubber head screw).
4. Gold sorting workbench.
5.Water supply pipeline.
6.Flush water regulating valve.
7.Centralized feeding system.
Gemini table features:
1.No foundation required, is designed to sit on a standard floor.
2.Batch & continuous supported
3.Motor power customized support , Available for single or three-phase power supply
4.Adjustable feed rate，suggest feeding slowly first
5.Speed controller and start stop panel device can be chosen for operation
6.According to the density difference between minerals, the gemini table use gravity method to separate precious metals;
7.It can maximize the concentration rate from low-grade concentrates;
8.Most important its final concentrate can be directly smelted to bullion;
9.Simple operation,low energy consumption,Adjustable feed rate
Parameter of the Gemini shaking table
|
Model |
GT60 |
GT250 |
GT1000 |
|
Power |
0.75kw |
1.1kw |
1.5KW |
|
Capacity |
30 kg / h |
115 kg / h |
450KG/h |
|
Voltage&Hz |
As requirement |
As requirement |
As requirement |
|
Feeding size |
≤ 2 mm |
≤ 2 mm |
≤ 2 mm |
|
Feed rate nominal |
30 kg / h |
115 kg / h |
450KG/h |
|
Feed density recommended |
60 - 70 % solid |
60 - 70 % solid |
60 - 70 % solid |
|
Nominal wash water requirement |
12 L / min |
25 L / min |
38 L / min |
|
Normal wash water pressure kpa |
30 Kpa |
30 Kpa |
30 Kpa |
|
Table bed material |
PP |
PP |
PP |
|
Frame |
steel structure |
steel structure |
steel structure |
|
Dimension |
1490 x1160 x 894(mm) |
2180 x1340x 1350(mm) |
2800 x1365x 1750(mm) |
|
Color |
As requirement |
As requirement |
As requirement |
GT1000 type gemini shaker table
GT60 gemini shaking table

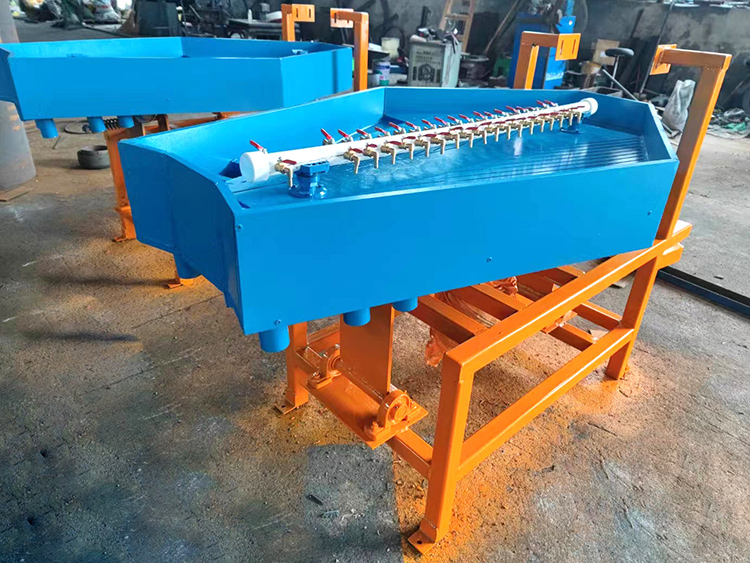

Gemeni table finished pic
Gemeni table finished pic
Gemini table application:
1.Recovery of fine gold to be smeltable gold concentrate
2.Recovery of precious metals such as gold, Palladium, ,tantalum,copper, lead, zinc, chromium, titanium, zirconium, rare earth, rutile, monazite, tantalum-niobium, iron ore, garnet, quartz, kaoli,Tungsten, tin, etc.
Gemini table for sale
Gemeni table factory price
Further reading
6S shaking table
6S Gold Shaking Table is one of the main equipments of gravity concentration applied on separating Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, Niobium , other rare metals & the noble metal ore.
The Gold Shaking Table effective recycling granularity scope is 2-0.0074 mm.
Shaking table could continuously sort concentrate ore, second-grade ore and tailings. It is applied in roughing, cleaning and scavenging for dressing coarse sand(2-0.5mm), fine sand(0.5-0.074mm), pulp(-0.074mm).
