Hydraulic wheeled trommel screen China staurk
Hydraulic Wheeled trommel screen, compare common mobile trommel screen,add a Hydraulic system , in working site, the Hydraulic can remote control the machine operate.
Application
Core Components:
Remote control , hydraulic pressure, PLC control cabinet, Engine(generator / motor can be chosen) ,Bearing, Gearbox(reducer), Motor, Pressure vessel, Gear, Pump,trommel screen,conveyor belt etc
PLC control cabinet
The trommel rotary speed is adjustable by PLC control cabinet, start, stop, speed control easily.

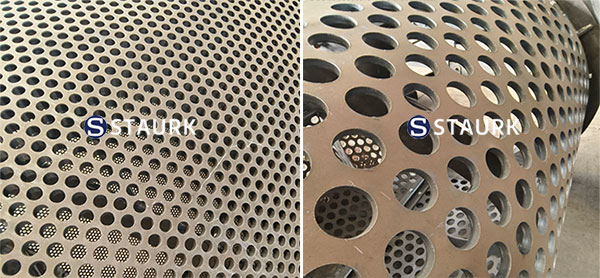

High quality trommel screen material
Steel plate with high quality manufacturing technology , material can be chose from High manganese steel, alloy,stainless steel etc.
And Screen hole size 0.05 - 300mm can be customized.
Brush
Including the ground level adjustable brushes that keep the screen clean and rotate away from drum for ease of drum change.
The brush includes holder, spring and bearing.
Hydraulic system
hydraulic raise /lower crawler track system,hydraulic legs and hydraulic conveyor belt etc.Can be chosen by remote controller,Hydraulic system.
Conveyor belt
Conveyor belt uses a herringbone belt which can prevent materials from slipping during conveying materials. The conveyor belt thickness is over 11mm for better quality.
Parameter of the Hydraulic wheeled trommel screen
|
Model |
Engine |
Hopper Capacity |
Drum |
Transport Length |
Transport Width |
|
512A |
74hp(55kw) |
3.4m³ (4.5yd³) |
5′ x 12′ (1.52m x 3.66m) |
12.19m (40′ 0″) |
2.59m (8′ 6″) |
|
512R |
74hp(55kw) |
3.4m³ (4.5yd³) |
5′ x 12′ (1.52m x 3.66m) |
14.60m (47′ 10.5″) |
2.59m (8′ 6″) |
|
516RE |
100hp(74kw) |
3.4m³ (4.5yd³) |
5′ x 12′ (1.52m x 3.66m) |
16.01m (52′ 6.5″) |
2.90m (9′ 6″) |
|
621REWT |
174hp(130kw) |
5.0m³ (6.5yd³) |
6’ x 21’ (1.83m x 6.40m) |
18.52m (60’ 9”) |
2.73m (8’ 11.5”) |
|
628TECH |
174hp(130kw) |
5.0m³ (6.5yd³) |
6’ x 28’(1.83m x 8.53m ) |
19.88m (65′ 3″) |
2.67m (8′ 9.5″) |
|
733RE |
174hp(130kw) |
6.9m³ (9yd³) |
7′ x 33′ (2.13m x 10.06m) |
21.19m (69′ 6″) |
3.30m (10′ 10″) |
Features
1.Heavy duty trommel screen drum
2.Diesel engine / motors can be chosen
3.Wheeled mobility and hydraulic raise /lower crawler track system
4.Integrated hydraulic folding stockpiling conveyors
5.Remote control radial conveyor
6.Fast on-site setup time
