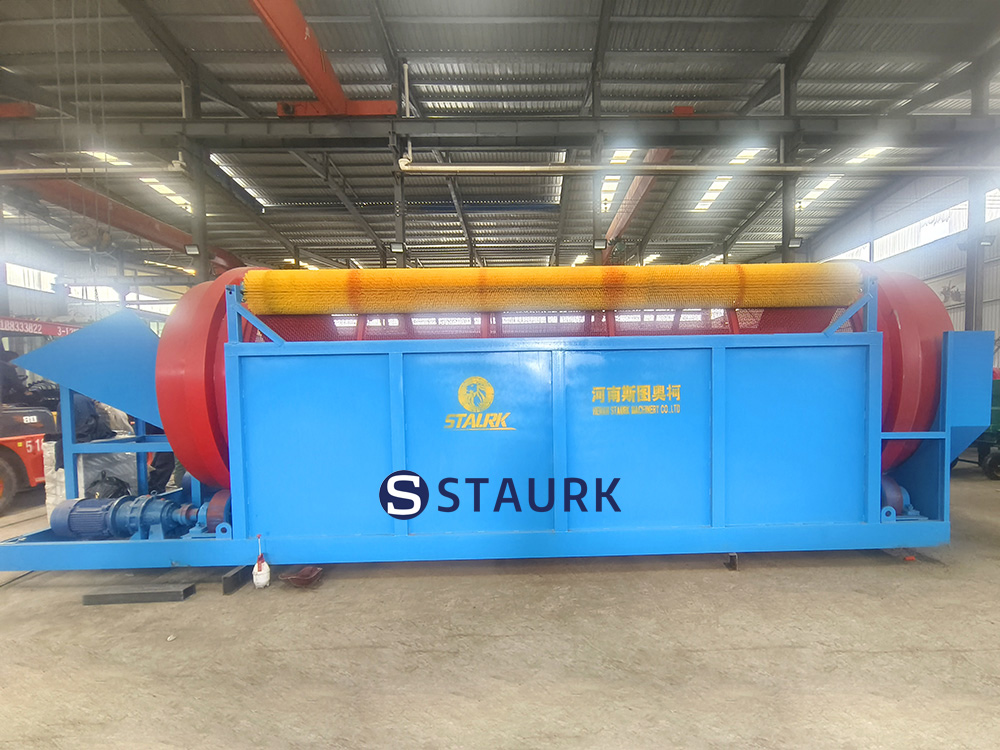

Sand trommel rotary screen sand stone sieve - China staurk
Origin：Henan, China
Power：4-100 kw
Capacity：1-1000Ton/h
Screen size：<1000mm
Used to： Wash, screen and separate stone, gravel, stone sand, sand, quarry, mining, ore, gold mining, tin mining , coal, coal gangue, building materials, construction waste, solid waste, and other materials etc.soil stone rock sand mining sieve sifter
Sand trommel rotary screen sand stone sieve - China staurk
Trommel video
Description Trommel rotary drum screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality,while allowing rapid and large volume processing.

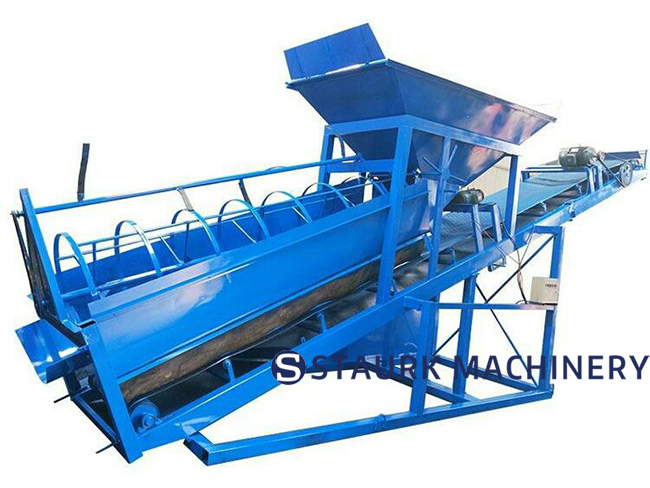

China fixed trommel sand screen
Structure

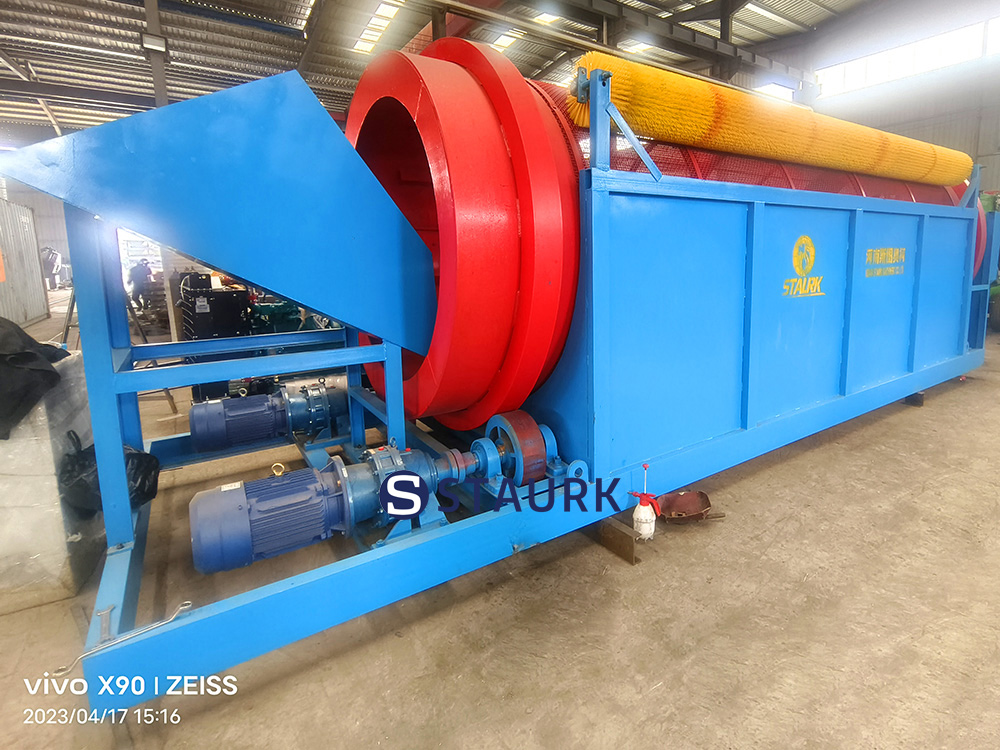

Mainly composed of reducer, motor, roller device, frame, sealing cover, inlet and outlet
Application
In stone sand
1.Separation of sand and gravel in the sand and gravel plant.
2.The quarry is separating large and small stones.
3.soil stone rock sand mining sieve sifter
In mining
A complete mining plant is formed by configuring the trommel screen, centrifugal concentrator, sluice boxes, shaking table and water pump, etc.
Trommel rotary screen for sale
Trommel rotary screen for sale
Trommel rotary screen for sale
Parameter of the Sand trommel screen
Model
Capacity
Power
Drum diameter
Drum length
Feeding size
Dischaged size
Dimension(mm)
(t/h)
(kw)
(mm)
(mm)
(mm)
(mm)
(L×W×H )
GTS1015
50
3
1000
1500
≤300
0～100
2600×1400×1700
GTS1020
100
4
1000
2000
3390×1400×2140
GTS1225
160
5.5
1200
2500
4146×1600×2680
GTS1530
250
7.5
1500
3000
4460×1900×2820
GTS1545
350
11
1500
4500
≤400
5960×1900×3080
GTS1848
450
15
1800
4800
6500×2350×4000
GTS2055
600
22
2000
5500
7500×2550×4800
GTS2265
800
30
2200
6500
8500×2750×5000
Parameter just as a reference,more parameters welcome contact us
Advantages:
1.It is a highly economically viable option adequately suitable for small to large volume processing of materials.
2.The screen features various filters for different heavy duty drums that ensure complete separation of fine materials.
3.The design has a end user flexibility that allows for screen replacements depending on mesh sizes
4.Multiple layers of screen to enhance the sifting process.
5.It features changeable screen plates so that worn out parts can be replaced.
6. Trommel screen has high efficiency and a big capacity for different volumes of materials
7.The screen is uniquely designed to facilitate higher capacities, provide longer screen life and avoid material clogging
